Heavy-Duty Bearings for Pool Pump Motors

Our pool pump motor bearings are crafted from high-quality, heavy-duty materials to ensure longevity and performance. Below is a list of the most common bearings used in pool and spa pumps. All bearings are name-brand (not generic) and are either OEM or of superior grade.

These bearings are compatible with a variety of pool pumps, including models from Poolrite, Hurlcon, Stroud, Quiptron, Spa-Quip, Questa, FPI, Poolstore, and Onga Pantera.

Note: When replacing the bearings, we recommend also changing the mechanical seal. If there has been any water leakage from the wet end of the pump, it could have caused corrosion in the motor housing, affecting the bearings. Ensure your pump drive shaft requires a 3/4" size mechanical seal, which is the most common for pool pumps.

Please verify that the measurements of your existing bearings match the specifications below:

• Diameter: 35mm
• Internal Hole: 15mm
• Width: 11mm

Bearing Size Chart:

• 6201: OD: 32mm, ID: 12mm, Width: 10mm (6201-2RSH)

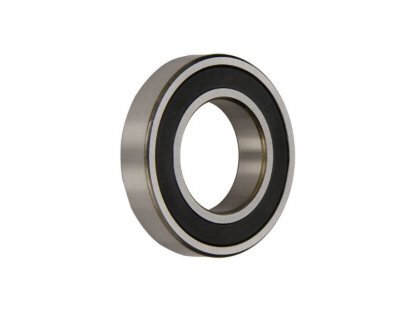

• 6202: OD: 35mm, ID: 15mm, Width: 11mm (6202-2RSH)
  (Onga 703610 - Fits LTP 550, 750, 1100)
• 6203: OD: 40mm, ID: 17mm, Width: 12mm (6203-2RSH)
• 6204: OD: 47mm, ID: 20mm, Width: 14mm (6204-2RSH)
  (Onga 703612 - Fits PPP 550, 750, 1100; older models may vary—please cross-check the required size)
• 6205: OD: 52mm, ID: 25mm, Width: 15mm (6205-2RSH)
• 6302: OD: 42mm, ID: 15mm, Width: 13mm (6302-2RSH)
• 6303: OD: 47mm, ID: 17mm, Width: 14mm (6303-2RSH)
• 6304: OD: 52mm, ID: 20mm, Width: 14mm (6304-2RSH)
• 6004: (May fit PPP series models—check the required size)

Please make sure to double-check the measurements and compatibility of bearings for your specific pump model.
