Hurlcon RX 50mm Multiport Valve Gasket Kit - Post Sept 09

This kit contains o-rings for 50mm Multiport Valve used on RX Sand Filters from Sep 2009 to current

Suits

  • RX360
  • RX400
  • RX500
  • E750
  • ECO750
  • FG705
  • FG805
  • FG905

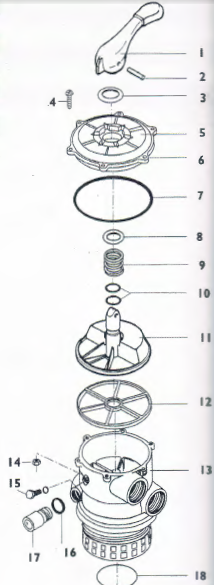

 Please note the diagram is the 40mm valve the 50mm actually has 10 bolts on the top cover

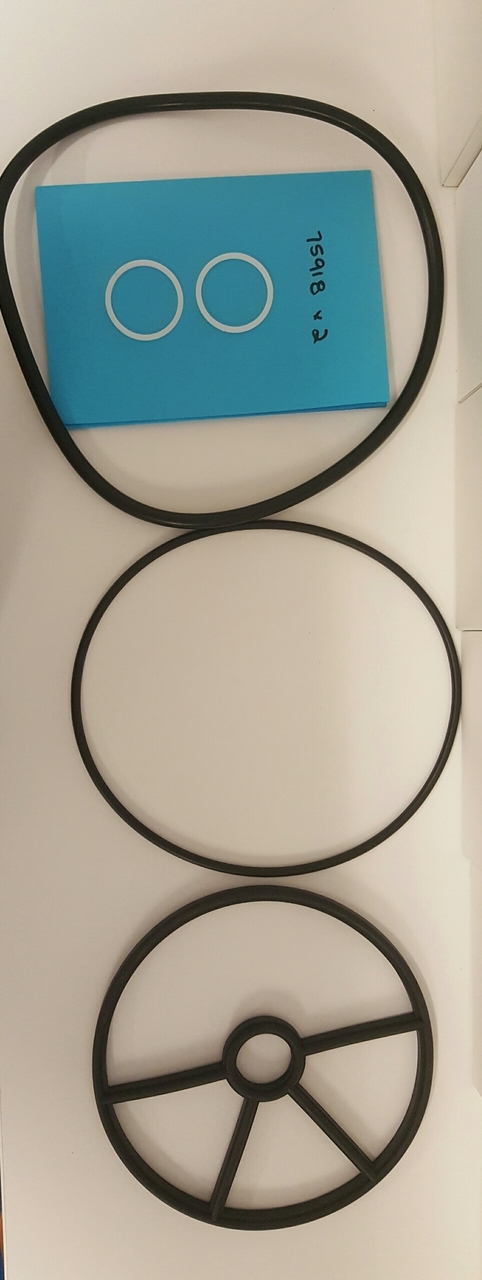

  • 1 x O Ring Valve to Tank
    • Part No 10 on sand filter breakdown below #75058
  • 1 x O Ring Cover Lid 50mm
    • Part no 7 on Multiport Valve #75930
  • 2 x Washer / Ring MPV
    • Part no 10 on Multiport Valve #75918
  • 1 x 50mm Spider Gasket
    •  Part No 12 on Multiport Valve #75929
    • Diameter 149mm
    • Internal diameter 137mm
    • Hole Internal Size 25mm
    • 4 spokes






















SKU RXKIT50-09
Brand Hurlcon
Shipping Weight 0.0500kg
Shipping Width 0.270m
Shipping Height 0.010m
Shipping Length 0.190m
Type Genuine
